SWM5000 vochtmeter

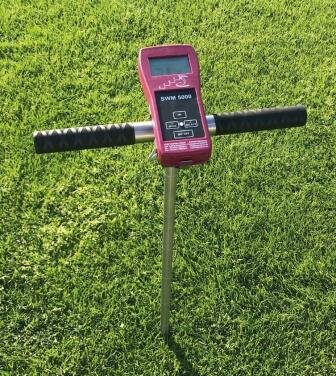

De SWM 5000 maakt gebruik van de nieuwste FDR techniek (Frequent Domain Reflectometry) om het vochtgehalte snel en nauwkeurig in bodem of bulkgoederen tot 1m diepte te bepalen. De temperatuur wordt gemeten met de in de tip ingebouwde NTC-sensor. De meetlans is een robuuste rvs staal, netto 1m lange steeklans, met dieptemarkeringen van 10 cm.

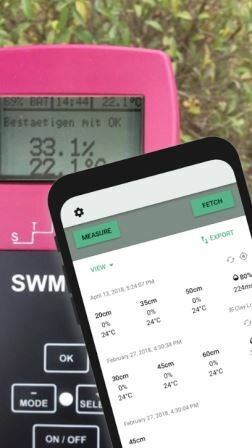

De meter heeft een handmatige of automatische datalogfunctie (3440 sets).

Technical Data:
Housing: splash-proof, IP40
Working temperature: 0°C to +40°C
Display: 54 × 32 mm; 128 × 64 Pixel
Input: 5-pin DIN socket
Battery: 9 V battery
Measuring time: 2 s for moisture and temperature
Data memory: approx. 3440 measured values
Measuring cycle: adjustable from 1 min to 24 hours
Languages: German, English, Russian
Dimensions: 83 × 180 × 55 mm
Weight: 330 g (basic unit)
Soil moisture measurement:
Unit: %VWC
Measuring range: 0 – 50%VWC
Resolution: 0.1%
Accuracy: ± 5% from measured value
Measurement method: FDR
Calibration: via software for 0%: against air 50%VWC: in water
Temperature measurement:
Unit: °C
Measuring range: 0°C to +60°C
Resolution: 0.1°C
Accuracy: ± 0.5°C
Measurement method: NTC
Calibration: not necessary (sensor internally)
Probe for manual measurement
Dimensions: length 1000 mm; Ø 20mm; 100 mm markings for the insertion depth
Sensor: 1 x temperatur; 1 x soil moisture; 9 cm away from the insertion tip
Probe: stainless steel tube with handle and attachment for measuring unit
Weight: 1.65 kg (probe with holder)
