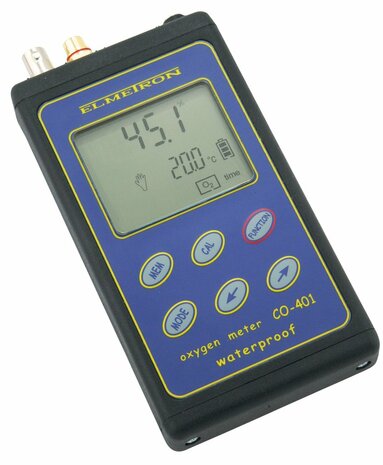

Elmetron CO401 zuurstofmeter

The most important features:

• Very high accuracy meter for use in the field and laboratory.
• Measures dissolved oxygen in % or mg/l, oxygen in the air in %, atmospheric pressure and temperature.
• Backlit display enables observation of the chosen function and temperature.
• Calibration in 1 or 2 points (0 and 100%).
• Possibility of entering the known salinity value which influences the dissolved oxygen concentration measured in mg/l.
• Memory of 4 000 results.
• USB output.
• Small size and weight.
• Waterproof housing.

• Characteristic features:

• Low weight and small size make working in the field easier.
• Waterproof housing facilitates working in difficult conditions.
• Equipped with easy to read backlit LCD with brightness control.
• Automatic air pressure measurement with calculation of its influence on the result of measurement of oxygen content in water or sewage in mg/l.
• Possibility of introducing the salinity value with automatic calculation of its influence on on the result of measurement of oxygen content in water or sewage in mg/l.
• In case if the measurement in mg/l is preffered it is highly recommended to order a CCO-401 - conductivity / oxygen meter, in which the influence of the salinity on the oxygen concentration is automatically calculated, the value is taken from salinity measurement.
• ”HOLD” function to freeze the result on the display.
• Signalisation of the result stabilisation with the ”READY” symbol and a sound.
• Possibility of sending a calibration report to a PC - up to 10 last calibrations.
• Easy in use galvanic oxygen sensor.
• When properly handled and maintained, the sensor may be efficient for several years.
• 1 or 2 point oxygen sensor calibration.
• Automatic or manual temperature compensation.
• Wide measuring range enables measurements in lakes with blooming vegetation.
• Possibility of determining the purity of industrial oxygen.
•

  Other features:

• Clock with date.
• Storing the date of next calibration and reminding it, in the right moment, to the user.
• Auto switch off function, with time set by the user, to protect the batteries against discharging.
• Internal data-logger for up to 4000 sets of results collected in series or singly with temperature time and date.
• The results and calibration data are stored in non-volatile memory.
• Possibility of connecting with a PC by a micro USB output and micro USB cable delivered in the set.
• Change of the date protected by a password
• The data transmission software enables printout of the data in a form protected against any changes.
• Powered by rechargeable batteries, or power adapter with USB / micro USB cable.
• The meter meets the GLP requirements.
• 24 months of warranty for the meter.

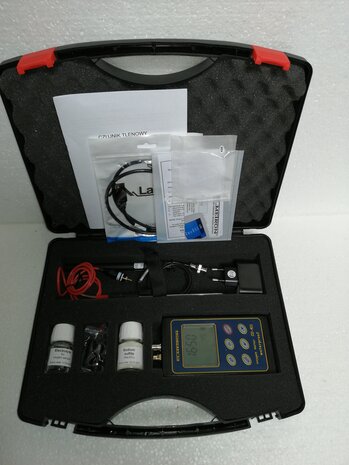

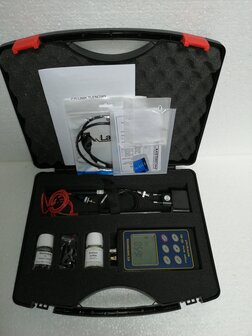

• The standard set includes: COG-1 oxygen sensor, CT2B-121 temperature sensor with Pt-1000B resistor.

  Meets the GLP requirements.



  TECHNICAL DATA

  Function	Oxygen %	Oxygen %	Oxygen mg/l	Temperature
  Environment	air	water	water	water or air
  Range	0 ÷ 100 %	0 ÷ 600 %	0 ÷ 60 mg/l	-50.0 ÷ 199.9 °C
  Accuracy	±0.1 %*	±0.1 %**	±0.01 mg/l*	±0.1 °C***
  Temp. compensation	-	-	0 ÷ 40°C	-
  Atmospheric pressure	800 ÷ 1100 hPa; accuracy ±2 hPa
  Power	Rechargeable batteries: 2x AA 1,2 V or 5 V / 1000 mA micro USB power adapter
  Dimensions (mm) / weight	L = 149, W = 82, H = 22 / 220g

  *	The accuracy of the meter only.
  **	The accuracy of the meter only. With COG-1 or COG-2 oxygen sensor the accuracy at calibration temperature: ±1%. By the difference ±5 °C accuracy: ± 3 %, by the difference ±10 °C accuracy: ±5 %.
  ***	The accuracy of the meter only. The total error includes the meters and probe’s accuracy. In the range 0 ÷ 100 °C the acceptable error of the probe with Pt-1000B resistor: ±0,8 °C, with Pt-1000A resistor: ±0,35 °C.
