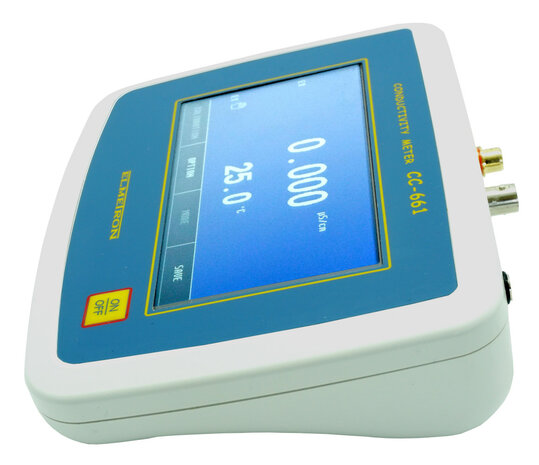

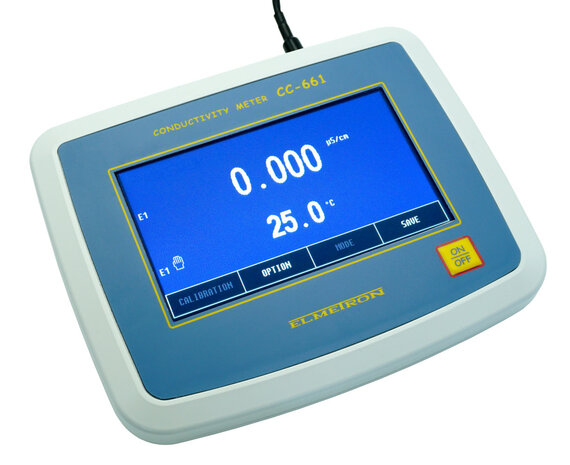

Laboratorium EC-meter, meetbereik met de meegeleverde ec-elektrode is 0 ~400 mS (EC).
Meet ook het zoutgehalte, TDS, weerstand en de temperatuur.
5"kleuren grafisch touch screen.
Kalibratie in 1 tot 3 waarden.
Automatische aanpassingen van de meetkarakteristiek voor natuurlijk water of ultra puur water.
Logcapaciteit voor 500 meetsets, usb connectie met een PC, software inbegrepen. GLP norm.
The set includes
CT2S-121 temperature probe with
Pt-1000S resistor and accurate
ECF-1 conductivity cell. Range: 0 ÷ 400 mS/cm is sufficient for conductivity measurements in majority of liquids with maximal concentration, ex.: aqueous soil extracts, water with grease, oil or fats. Metal electrodes are easy to clean. Plastic housing protects from mechanical damage.
TECHNICAL DATA
| Function |
Conductivity |
Salinity |
Resistivity |
Temperature |
| Range |
0 ÷ 1000 mS/cm |
NaCl 0 ÷ 296 g/l
KCl 0 ÷ 239 g/l |
0.500 Ωcm ÷ 200 MΩcm |
-50.0 ÷ 200.0 °C |
| Accuracy (± 1 digit) |
up to 19.999 mS/cm ±0.20 %*,
above 20.00 mS/cm: ±0.35 %* |
±2.00 %* |
±2 % of the measured value* |
±0.1 °C** |
| Temp. compensation |
-5 ÷ 70 °C |
-5 ÷ 70 °C |
-5 ÷ 70 °C |
- |
| α coefficient |
0.00 ÷ 10.00 %/°C |
0.00 ÷ 10.00 %/°C |
0.00 ÷ 10.00 %/°C |
- |
| K constant |
0.010 ÷ 20.000 cm -1 |
- |
- |
- |
| Power |
Power adapter 5V 1000mA |
| Dimensions (mm) |
L = 175, W = 140, H = 52 |
| Weight |
420 g |
| * |
The accuracy of the meter only. |
| ** |
The accuracy of the meter only. The total error includes the meters and probe’s accuracy. In the range 0 ÷ 100 °C the acceptable error of the probe with Pt-1000S resistor: ±0,27 °C. |
