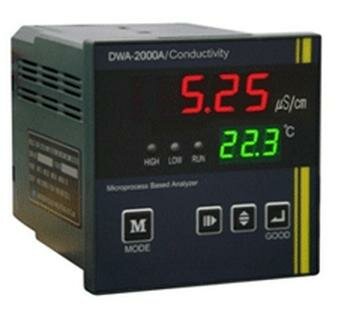

DWA2000CD EC controller en transmitter

EC (conductivity) meter, transmitter en controller voor DIN96 inbouw.

Meetbereik: 0~2000 uS ;
2 contactrelays met NO en NC en een cleaning contact ;
De 4-20mA output (of instelbaar 0-20mA/ 0-24mA) is geisoleerd;

3 leds voor hoog/laag en analoge output;
Werkt met 2 polige ec-sensoren, kalibratie met standaardoplossing ;
Menugestuurde bediening ;
Handmatige of automatische temperatuurcompensatie met 25ºC als basis en is instelbaar ;
Instellingen blijven behouden na stroomuitval dmv Eeprom;
EMC design tbv anti-interferentie ;
Werkt op 230V AC ;
De temperatuurcompensatie werkt met een PT-1000 temperatuursensor.
Sensoren zijn optioneel te bestellen.

Outline

The Conductivity Controller (DWA-2000A-CD) has built-in microprocessor, equipped the best function and specification for measuring Conductivity in the industry.
Compatable with DIN 96 sized panel mounting type and compact designed with consideration of user to easy installation.
This compact case has the built-in high brightness 7-Segment,
manual/auto calibration, Conductivity automatic temperature compensation, Relay contact output(3 contacts), current signal output.

Function / Features

- Certificate : Certificate of Patent
- Certificate : Certificate of CE
- Relay Contact output (3 contacts) High, Low Alarm & Cleaning Contact
- Simple Operation by 4 Keypad Button
- High brightness 7-segment display
- Isolated(4~20, 0~20, 0~24 mA DC) Output Transmission
- Automatic Cleaning Control(Air jet, Water jet) Function
- panel mounting (DIN 96 size)
- Microprocessor-based Digital Program Controller

Specifications
- Code No. : 413120001CD
- Model : DWA-2000A-CD
- Channel : Single channel
- Range : 0 ~ 2,000 uS/cm or user spec’.
- Resolution : 0.01
- Power : AC 110/220V, 50/60Hz, 3VA
- Accuracy : ± 1% of F.S
- Repetition & Reappearance : ± 1% of F.S
- Response time : 30 sec(90% saturation)
- Analog output : 4~20mA DC(STD.)
- Relay output : High, Low & Cleaning Contact
- Display : measuring value, Temp (7-segment)
- Humidity : max. 90%(non-condensing)
- IP Rating : IP54
- Size : 96(W)x96(H)x125(D)- DIN96 Size
- Installation : Panel mounting
